What Is An Effects Loop On An Amp?

What Is An Effects Loop On An Amp?

March 3, 2024
Last Updated on March 3, 2024

Have you ever wondered how guitarists get such cool sounds out of their amps? Well, a big part of their secret is something called an "effects loop." Think of it as a special path in the amp where you can add effects like reverb, delay, and modulation to your tone. It lets you place your guitar pedals either in the front for a raw, in-your-face sound, or in the loop for a cleaner, more polished vibe. Let's dive in and see how this cool feature can make your amp do amazing things for your music.

What Is An Effects Loop?

So, what exactly is an effects loop? It's a feature found on many guitar amplifiers that lets you add pedals—like delay and reverb—into your signal chain in a special way. Normally, when you plug a pedal into your guitar, you're putting it "in front of the amp." This means the sound from your pedal goes straight into the amp and gets mixed in with everything else, including the amp's own distortion or overdrive.

An effects loop, however, lets you place these pedals between the preamp and the power amp sections of your amplifier. The preamp is where your guitar's raw signal gets its initial flavor—be it clean, distorted, or somewhere in between. After the preamp does its magic, the signal usually goes to the power amp, which makes it loud enough to rock out with. But with an effects loop, you can insert your effects right before the power amp stage. This means these effects are added to your sound after it's been pre-distorted or overdriven, keeping them crisp and clear.

Why does this matter? Well, if you've ever tried using a delay pedal in front of a distorted amp, you might have noticed the repeats can get pretty muddy. By using an effects loop, those repeats stay distinct and clear, making your overall sound much cleaner and more professional.

Exploring The Types of Effects Loops: Series And Parallel

Now that we've covered what an amplifier effects loop is, let's dive into the different types you might encounter. There are mainly two kinds of effects loops: series and parallel. Each type has its own way of blending your guitar's signal with the effects, and understanding the difference can help you make better choices for your sound.

Series Effects Loop: A Direct Approach

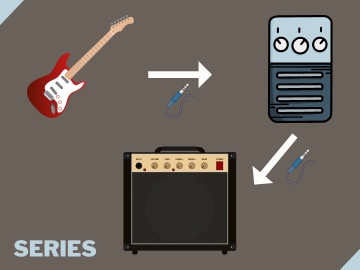

Series effects loop.

In a series effects loop, a guitar signal's journey is straightforward: it passes through the preamp, enters the effects loop, gets modified by any connected effects, and then flows into the power amp. This type of loop is predominant in many amplifiers, appreciated for its simplicity and the ease of use.

  • Every ounce of the signal is processed through your pedals.
  • Ideal for when you want your effects to have a pronounced impact on the entire signal.
  • Typically easier to set up and manage, making it a popular choice.

Parallel Effects Loop: Blending Signals

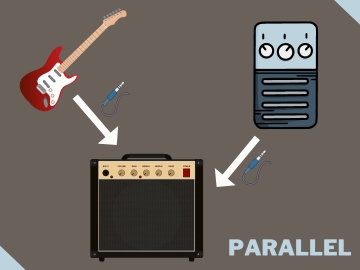

Parallel effects loop.

The parallel effects loop takes a more nuanced approach by splitting your guitar's signal into two paths. One path sends an unaltered dry signal straight to the power amp while the other routes through the series of effects. Afterwards, both signals are mixed to your liking, granting you complete control over the balance between the effected and original sounds.

  • Preserves the core tone of your guitar by keeping a part of the signal untouched.
  • Allows for fine-tuning the mix between dry and wet signals for subtle layering of effects.
  • Particularly useful for retaining the guitar's natural sound in conjunction with ambient effects like reverb and delay.

Why Use An Effects Loop?

So, why should you bother using an effects loop instead of simply plugging all your pedals in front of the amp? The answer lies in the clarity, quality, and versatility of the sound you can achieve.

Clarity Of Sound

When you place time-based effects like delay and reverb, or even some modulation effects, directly in front of a distorted amp, the distortion can have a negative impact on these effects directly, often resulting in a muddied and unclear sound. This is because the distortion amplifies not just the original guitar signal but also the repeats and trails of these effects, blending everything into a less distinct sonic soup.

An effects loop, however, allows these types of effects to enter the signal chain after the preamp distortion, meaning they modulate a cleaner, already shaped sound. This results in a clearer, more pronounced effect that enhances rather than overwhelms your guitar tone.

Volume Control

Volume pedals can also benefit from being in the effects loop. When placed in front of the amp, a volume pedal controls the guitar's signal strength, affecting how much signal reaches the preamp and thus how much distortion you get. However, when placed in the effects loop, the volume pedal adjusts the overall volume without affecting the amount of distortion, allowing for smoother volume swells and better control over your sound dynamics.

Flexibility With Distorted Tones

Using an effects loop opens up new possibilities for shaping your sound, especially with distorted tones. Distortion or overdrive pedals in front of the amp can create fantastic sounds, but integrating them with time-based effects can be challenging. By routing these effects through the loop, you can maintain the aggressive, distorted edge of your tone while adding space and depth without losing definition.

Experimentation And Creative Freedom

Perhaps the most compelling reason to use an effects loop is the creative freedom it offers. Experimenting with different effects in the loop versus in front of the amp can lead to unique sounds you might not have discovered otherwise. It encourages you to think differently about signal flow and effects placement, ultimately leading to a more personal and expressive sound.

Breaking Down The Signal Chain: Positioning Your Pedals For Optimal Sound

Guitarist with a pedalboard on stage.

Imagine setting up your pedalboard with precision, each pedal placed just so for the maximum impact. Start with dynamics—your compressors—to even out your signal's volume and energy. Next, layer in the grit and growl with distortion and overdrive pedals, followed closely by EQ pedals to sculpt your sound to perfection.

Once your signal has been shaped and distorted by the amp's preamp, it's ready for the nuances of modulation. Modulation effects, including the lush swirls of chorus, the spacey warble of flangers, and the sweeping motion of phasers, find their true voice in the effects loop. Here, they can weave their magic into the fabric of your tone, preserving their clarity and character without getting lost in the mix.

By thoughtfully considering the order of your pedals and utilizing the effects loop, you craft a sound that's not just heard but felt. This strategic approach ensures each pedal not only works to its fullest potential but also contributes to a richer, more cohesive sound.

How To Connect To An Effects Loop

Getting your effects loop up and running can be done with a few simple steps. Here's a straightforward guide to connecting your pedals to your amplifier's effects loop, ensuring a seamless integration of your effects with your amp's natural tone.

Step 1: Identify Your Loop Connections

First things first, locate the effects loop jacks on your amplifier. Typically, you'll find two jacks labeled "Send" and "Return." The "Send" jack directs your guitar's preamp signal out to your effects, while the "Return" jack brings the effected signal back into the amp, ready for the power amp stage.

Step 2: Connect Your Pedals

Start by connecting a cable from the "Send" jack on your amp to the input of the first pedal in your effects loop chain. Then, chain your effects together as you normally would, using short patch cables. Finally, connect the output of the last pedal in your chain back to the "Return" jack on your amplifier.

Step 3: Adjust Your Levels

Before you power everything up, make sure the volume levels on your pedals are set to a starting point that won't overload your amp when you turn it on. This helps prevent any unwanted noise or damage to your equipment.

Step 4: Fine-Tune And Experiment

With everything connected, it's time to fine-tune. Turn on your amp and start playing, adjusting the levels on your effects pedals to taste. This is also a great time to experiment with the order of your pedals within the loop to discover how different configurations affect your sound.

Frequently Asked Questions (FAQs)

Can the use of an effects loop change my tonal signature?

Absolutely. An effects loop can change your tonal signature by allowing for a different quality and clarity of effects, especially when running a distorted or overdriven amp tone. Experimenting with the effects loop can uncover new tonal options and nuances to help create your unique sound.

Can any pedal go into an effects loop?

Most time-based effects like delay, reverb, and some modulation pedals (chorus, phaser, flanger) are ideal for the effects loop because they benefit from the clean signal post-preamp distortion. However, dynamics (compressors, noise gates) and drive pedals (overdrive, distortion, fuzz) usually go in front of the amp to interact directly with the guitar's raw signal.

How do I prevent volume drops or increases when using the effects loop?

Volume inconsistencies can sometimes occur due to the level differences between your amp's loop and the pedals. Start by setting your pedal's output level to unity gain (where the output volume matches the bypassed signal). If your amp has level controls for the send/return loop, adjust these to match the pedal levels.

Can using an effects loop introduce noise?

An effects loop can introduce noise if there's a mismatch in signal levels or if low-quality cables are used. To minimize noise, use high-quality, shielded cables and ensure your pedals are properly powered with isolated power supplies when possible.

What if my guitar amp doesn’t have an effects loop?

If your amp lacks an effects loop, you can still achieve great tones by carefully ordering your pedals in front of the amp. A good rule of thumb is to place dynamics and drive pedals early in the chain, followed by modulation, and then time-based effects last. Experiment to find the best sound.

Final Thoughts

Using effects loops can be a game-changer for any guitarist looking to elevate their sound. By understanding how to properly integrate this powerful tool, you unlock a new level of clarity and tone in your music. Whether you're weaving intricate delays, lush reverbs, or sweeping modulations into your sound, the effects loop offers a path to polished tones that stand out in the mix. Remember, the key to mastering your effects loop is experimentation—don't be afraid to try new configurations and discover what works best for your unique sound. With a little patience and creativity, you'll find that the effects loop is not just a feature on your amp; it's a gateway to endless sonic possibilities.
