What Is Oversampling In Audio?

July 30, 2023
BY DAN SPENCER
Last Updated on July 30, 2023

In the world of audio processing and algorithms, you may have come across the term oversampling. Often hidden behind the scenes, this process helps improve the precision of digital to analog conversions, reducing distortions and enriching the overall listening experience. Whether in music production or film, oversampling plays a role in the final product we hear. In this post, we'll drill down into the intricacies of audio sampling, from the basics and concept of oversampling, to its practical applications. Let's begin!

Audio Sampling Basics

Digital ones and zeros representing oversampling in audio.

Understanding Audio Sampling

Audio sampling is a fundamental aspect of digital signal processing and production. At its simplest, audio sampling is the process through which continuous analog audio signals are converted into digital audio data. This conversion is required because computers and digital audio devices can only process digital information.

Audio sampling is performed by taking snapshots or "samples" of the analog input signal at regular intervals. The number of samples taken per second is referred to as the sampling rate. The more samples taken per second, the more accurately the digital audio will represent the original analog signal and thus the higher the audio quality.

For example, an audio CD has a sampling rate of 44.1kHz, meaning 44,100 samples are taken every second. At this sampling frequency, the quality of the audio signal is near the maximum that the human ear can appreciate. There is some controversy over whether higher sampling rates result in better audio quality, but the general consensus is that above 44.1kHz, the improvement in quality is negligible for most people.

How Audio Sampling Rates Affect Quality

Sampling rate is crucial in defining the audio bandwidth, and higher sampling rates allow for capturing more high frequencies. The Nyquist-Shannon sampling theorem states that for accurate reproduction of the original signal without any information loss, the sampling rate should be at least twice the highest frequency in the signal. This iteration ensures that adequate data points accurately represent high-frequency content.

A higher sampling rate implies capturing more information about the sound within each second, thereby increasing resolution and theoretically enhancing audio quality. However, while oversampling may capture extra details beyond the human hearing frequency range, this does not always translate to a better listening experience.

Introduction To Oversampling

What Is Oversampling In Audio?

ExperimentalScene AntiAlias audio plugin.

Oversampling is a commonly adopted technique in digital audio processing to attain a cleaner, superior quality musical signal. The principle behind oversampling is utilizing a higher sampling rate than the customary or necessary rate. By processing individual sound events multiple times within a second, sound engineers can generate a more precise digital equivalent of the original audio signal.

Why Is Oversampling Needed?

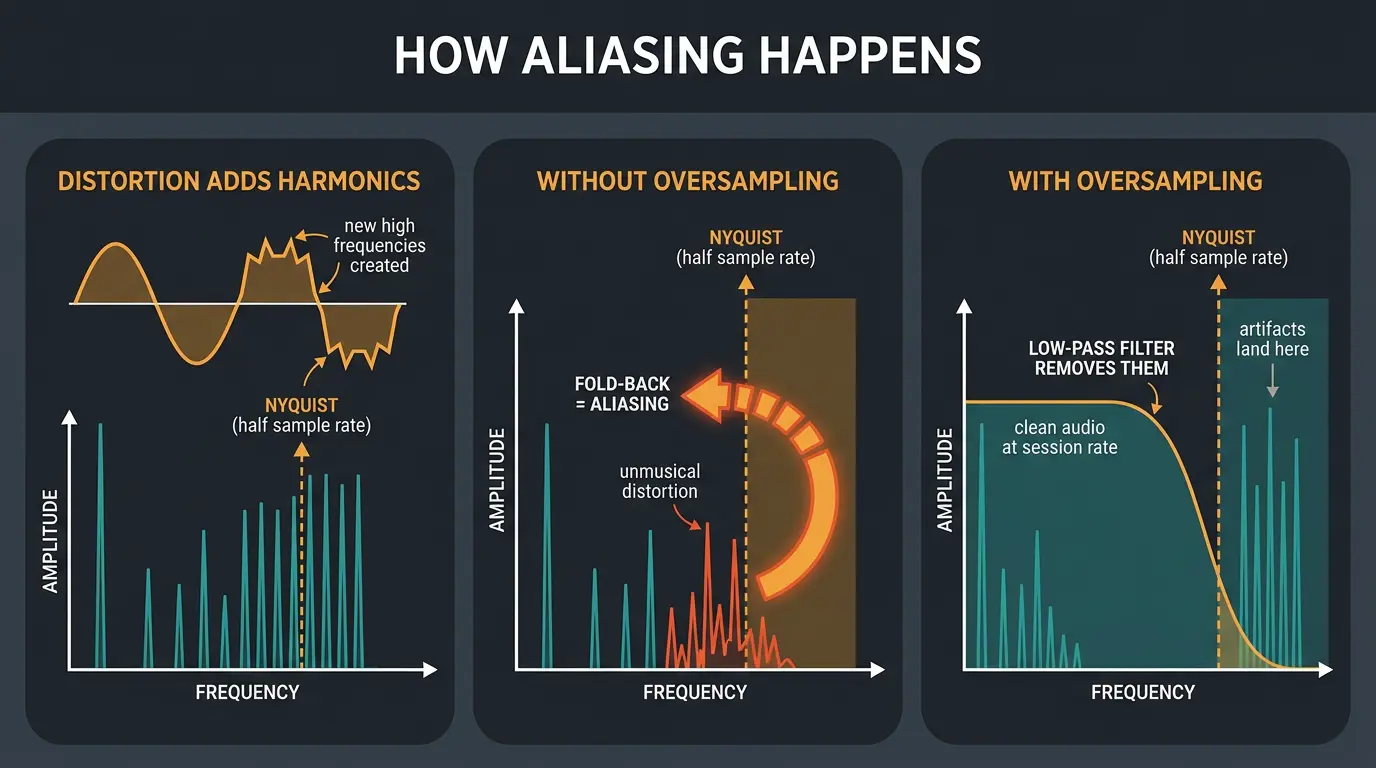

Oversampling is necessary primarily to avoid an artifact known as 'aliasing'. Aliasing is a form of distortion that occurs when a digital system tries to reproduce frequencies above the Nyquist frequency – half of the sampling rate. When you oversample, you move the Nyquist frequency well above the range of human hearing, thus eradicating the aliasing problem and resulting in a cleaner, more accurate sound.

Furthermore, oversampling also allows audio processors to use simpler, more linear digital filters. Due to the increased sampling rate, the processor can effectively remove unwanted high frequencies without detrimental effects on the desired frequencies within the audible range.

Working Principle Of Oversampling

To understand how oversampling works, imagine a scenario where you're capturing a picture of a moving object. If you capture one image per second, you might miss some crucial details in between. Conversely, if you shoot at a faster rate—say, 60 frames per second—you’re more likely to capture the object's subtle movements, providing a truer representation of the action.

This principle also applies to oversampling in audio. By taking more frequent "snapshots" of an audio signal than necessary, possible ‘gaps’ in data, which could potentially create a distortion or inaccuracies in the final audio representation, are minimized. The resulting audio file becomes virtually distortion-free and is a more accurate representation of the original sound.

Practical Application Of Oversampling In Audio

Broadcast microphone in front of a mixing console.

Oversampling In Music Production

In music production, oversampling is heavily utilized to maintain audio fidelity especially during the digital processing of audio signals. When audio engineers apply digital effects such as EQ, compression, or limiting, distortion will often occur. As we talked about earlier, this distortion is known as aliasing.

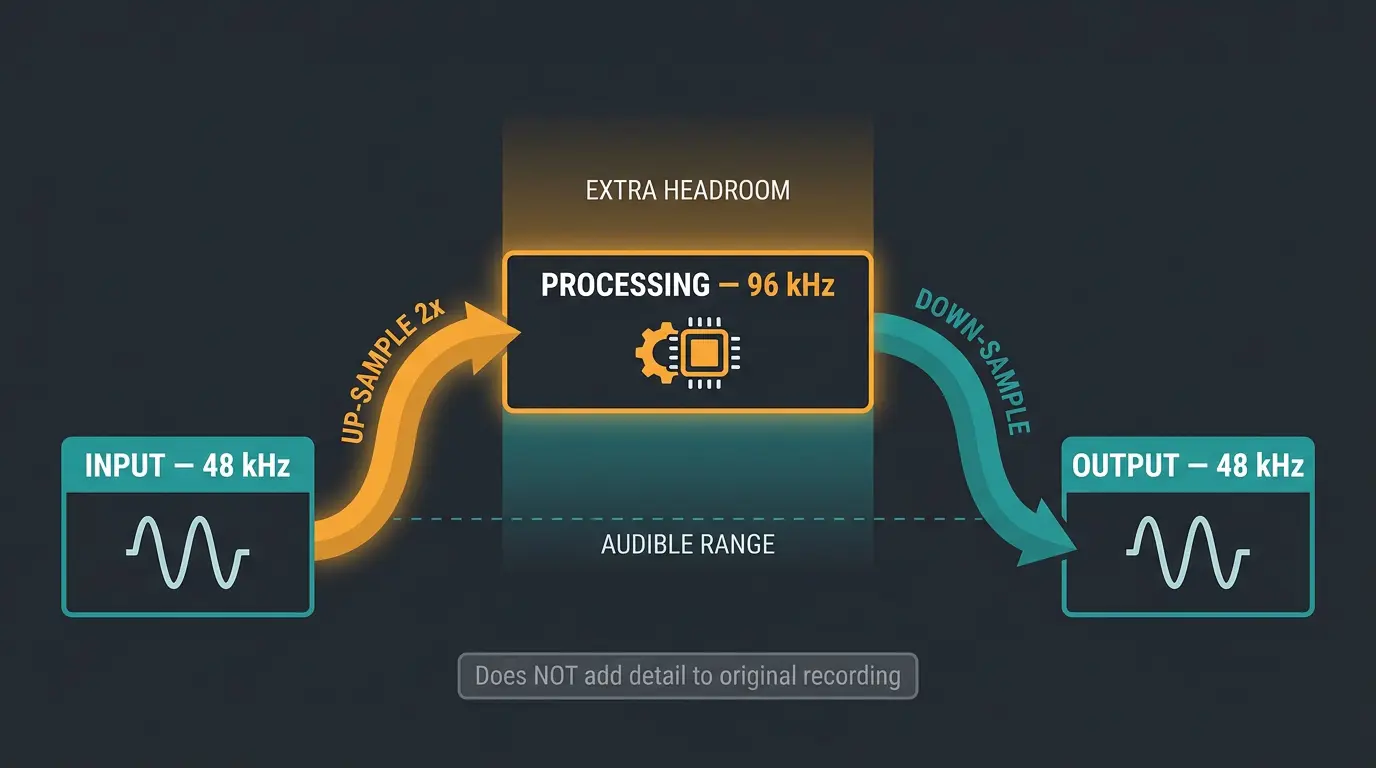

By oversampling, the signal processing is done at a far higher sample rate, such as 176.4 KHz or 192 KHz. This gives a lot more "room" above the Nyquist Frequency, meaning the aliasing can occur at a frequency level where it's less likely to be audible to humans. After processing, the audio is then brought back down to the final required sample rate, an act called down-sampling.

Oversampling In Filmmaking And Broadcasting

In the field of filmmaking and broadcasting, oversampling serves a similar function. It’s used to ensure the final audio matches the quality and fidelity of the visuals. High-end film and video cameras often have capabilities to capture visuals at a high resolution and frame rate. To match this, the audio too needs to be captured and processed at a higher sample rate.

Broadcasters and film producers often process and edit their audio at a higher sample rate, to prevent any potential degradation of quality during the broadcast or distribution process. This is because broadcast systems and movie theaters often have audio systems capable of reproducing audio at a high fidelity, hence any slight distortion or loss in quality can result in an audibly poorer experience for consumers.

Application Of Oversampling In Audio Plugins

Many audio plugins come with their own internal oversampling options. So, even if your project is set at a sample rate like 44.1 kHz, these plugins will process the audio at a higher rate internally, providing the benefits of oversampling. It is important to know though, oversampling uses more CPU power, so it can be a trade-off between audio quality and system performance.

Oversampling Pros & Cons

Pros
  • Makes distortion (aliasing) inaudible
  • Get the benefits of higher sample rates
  • Improves audio fidelity
Cons
  • CPU intensive
  • Higher oversampling can introduce noise
  • Doesn't remove distortion, only masks it

Final Thoughts

Throughout its journey from the origin to the receiver, sound undergoes a series of transformations. The processing techniques, particularly oversampling, ensure that the essence of the sound remains intact or is enhanced.

Delving into the realm of oversampling has allowed us a glimpse into the mathematical genius employed behind the music, film, and broadcasting industries. Embracing this knowledge enables a deeper appreciation of the sonic marvels that grace our ears daily, from the tiniest ringtone to the grandest of orchestras.

Most importantly, it underscores how creative and technical minds collaborate to produce sounds that move, entertain, and inspire us.

Frequently Asked Questions (FAQs)

What is the Nyquist Theorem and how does it relate to oversampling?

The Nyquist Theorem, named after Harry Nyquist, states that a signal must be sampled at least twice its highest frequency to accurately represent the original signal. Oversampling is related to this because by sampling at a rate much higher than twice the highest frequency, we can further reduce errors and distortions in the digital representation of the audio signal.

What does 'aliasing' mean in audio?

Aliasing is a form of distortion that happens when high-frequency components of the audio signal are 'mirrored' into lower frequencies during the digitization process. Oversampling helps to mitigate this issue by effectively pushing these mirrored frequencies higher up the spectrum, where they can be filtered out without affecting the audio frequencies we want to preserve.

Is there a 'best' oversampling rate?

How much oversampling is needed can depend on a variety of factors, including the specific application, the available computational resources, and the design of the digital-to-analog converter (DAC). In many cases, an oversampling rate of 2x to 4x the Nyquist rate is often used.

What is the difference between oversampling and bit depth?

While both oversampling and bit depth can affect the quality of digital audio, they do so in different ways. Oversampling involves increasing the sampling rate to reduce distortion and improve accuracy, while bit depth refers to the number of bits used to represent each sample, affecting the dynamic range and noise floor of the audio. Both techniques can be used together to enhance audio quality.

Is there any relation between oversampling and 'dithering'?

Yes, both oversampling and dithering are techniques used to improve the quality of digital audio. While oversampling is focused on reducing distortions caused by a lower sampling rate, dithering is used to handle the quantization noise when reducing the bit depth. They can be used together to enhance the overall audio quality.
